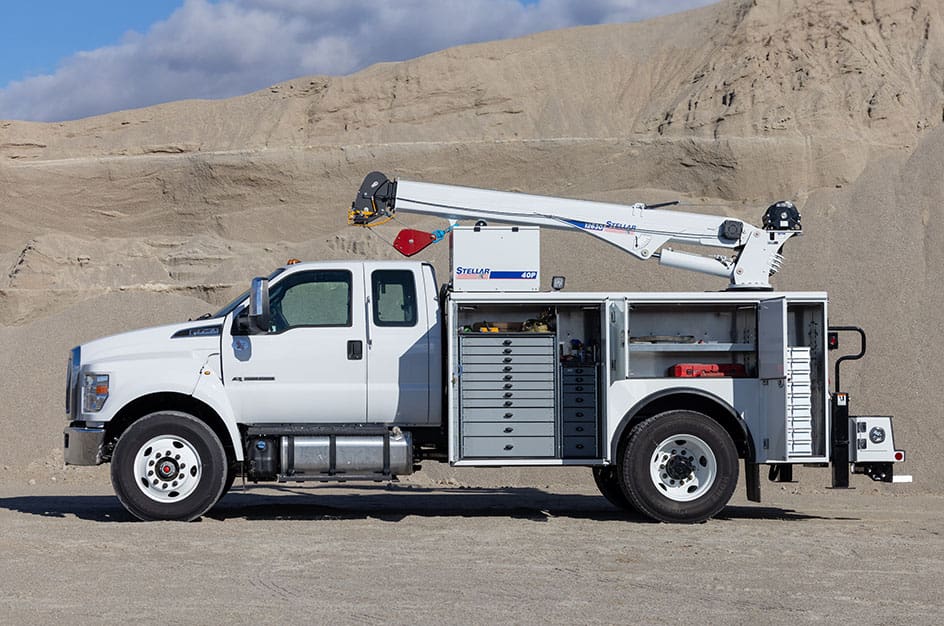

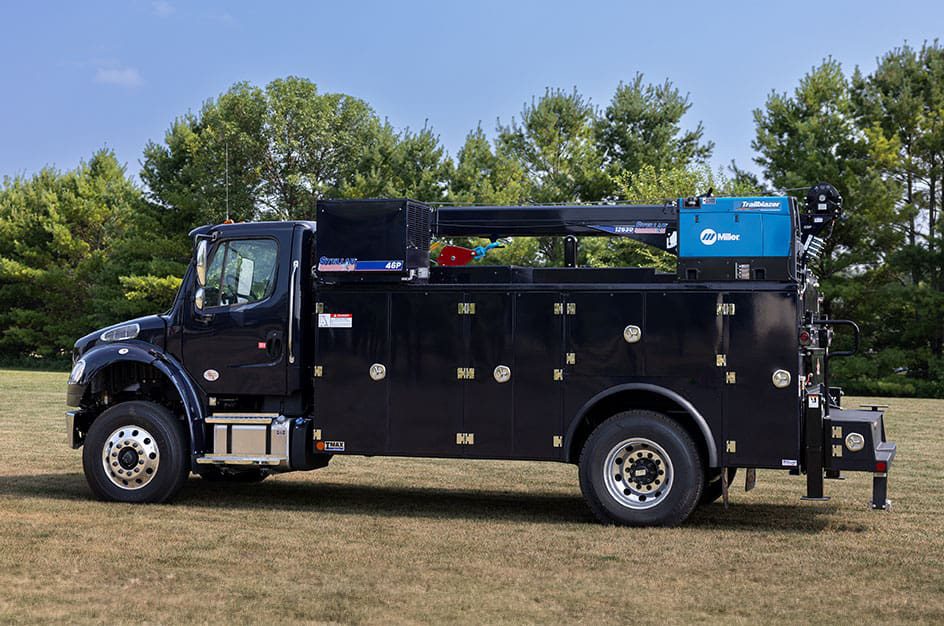

Stellar TMAX 2 Mechanic Truck: Built to Handle the Toughest Jobs
For applications that demand uncompromising strength and durability, the Stellar Industries TMAX 2 mechanic truck is the ultimate solution. At Heritage Industries, we specialize in providing heavy-duty equipment that performs under pressure. The TMAX 2 is engineered to be a true workhorse, built to handle larger cranes and the most demanding jobs in industries like heavy construction, mining, and oil and gas.
The Ultimate in Heavy-Duty Construction
The TMAX 2 is built with a rugged steel body shell that is specifically designed to support the immense forces of high-capacity cranes. Its foundation is Stellar’s proprietary Torq-Isolator crane support system, which expertly transfers lifting stress directly to the chassis, not the body compartments. This ensures the structural integrity of the truck, preventing compartment damage and maintaining functionality for years of rigorous use.
Engineered for Serious Lifting Power

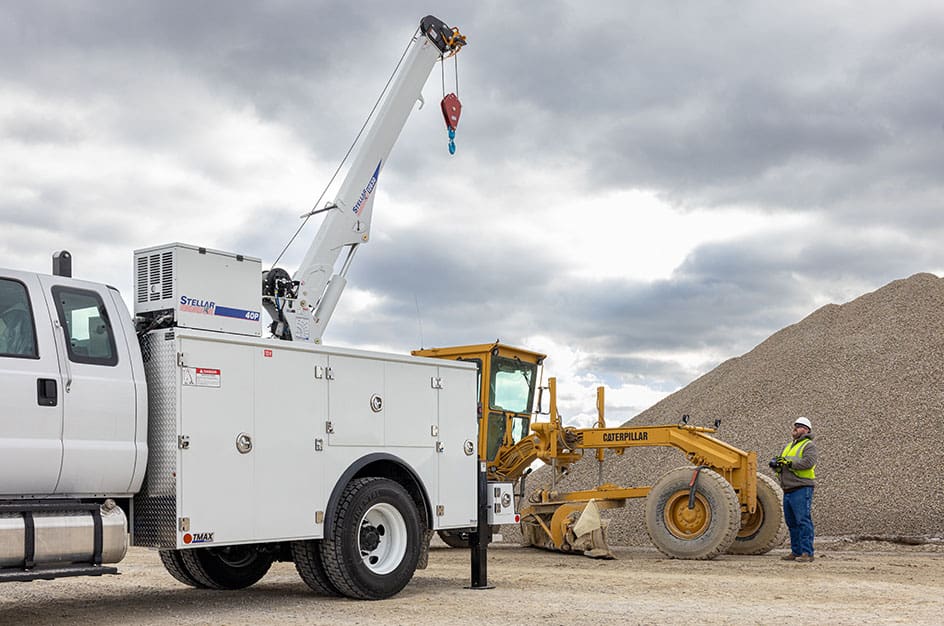

The TMAX 2 mechanic truck is a natural fit for Stellar’s most powerful hydraulic cranes, including the 10621 and 12630 models. Its robust build and reinforced crane compartment allow it to handle heavy-duty lifting tasks with confidence and stability. Whether you’re lifting heavy equipment, engines, or large components, the TMAX 2 provides a solid platform that minimizes flex and maximizes safety.
Ease of wiring access with added pre-drilled holes between compartments.
Bale-handle drawer sets and bolt bins for better organization.
Proven Performance:
- Available in either 11′ or 14′ bodies.
- Stellar’s torq-isolator crane support design isolates the crane compartment from the rest of the side pack.
- Lifting stresses are transferred to the stabilizers and box-type subframe, not the compartment doors.
- Aluminum extruded top with drill-free mounting rails make it easy to add a wide range of mechanic service truck accessories.
- Aluminum sidepack and doors reduce weight and corrosion, allowing for more payload and longer life.
- Bodies feature a 21″ or 30″ steel workbench bumper with an integrated full-width long bar storage compartment and vise mounts.
- Roller-type boom support helps center the crane boom when stowing.
- Stainless-steel billet-style hinges have hidden fasteners and a rugged 5/16″ stainless-steel rod for years of heavy use.
- Rotating master-lock system for security.
- Exterior mounted light box provides easy mounting for work lights and other accessories while minimizing entry points into the body.
- 3-point compression latches keep weather-stripping tight while allowing easy access.
- Double-panel 1/8″ aluminum tailgate with hinged arm brackets provides a stout working surface.
- 250-lb capacity, adjustable divider shelves made of spangled galvanized steel.
- Complete undercoating, with minimum of 6.5 mils of petroleum base material, provides extra protection from corrosion and road debris.
- Easily add a wide range of mechanic service truck accessories.
Specifications
| TMAX 2-11 | TMAX 2-14 | TMAX 2-14 Low Cab-Forward | |
|---|---|---|---|
| Applicable Chassis: | 25,500 – 33,000 GVWR (22.5 tire size) | 25,500 – 33,000 GVWR (22.5 tire size) | 25,500 – 33,000 GVWR (22.5 tire size) |
| Body Height: | 60″ (152 cm) | 60″ (152 cm) | 60″ (152 cm) |
| Body Width: | 94″ (239 cm) | 94″ (239 cm) | 94″ (239 cm) |
| Floor Width: | 50″ (127 cm) | 50″ (127 cm) | 50″ (127 cm) |
| Compartment Depth: | 22″ (55.88 cm) | 22″ (55.88 cm) | 22″ (55.88 cm) |
| Clear Cab to Axle: | 84″ (213 cm) | 120″ (305 cm) | 120″ (305 cm) |
| Body Length: | 133″ (338 cm) | 169″ (429 cm) | 169″ (429 cm) |
| Net Weight: | Aluminum: 3,459 – 3,544 lbs (1,569 – 1,607 kg) Steel: 4,388 – 4,469 lbs |
Aluminum: 3,960 lbs (1,797 kg) Steel: 5,140 lbs |
Aluminum: 3,665 lbs (1,662 kg) |
Your Complete TMAX 2 Solution from Heritage Industries
We understand that a truly heavy-duty truck is a carefully assembled system. At Heritage Industries, our upfitting experts will work with you to customize your TMAX 2 truck to your exact specifications. We’ll help you select the ideal high-capacity crane, and outfit your truck with specialized tools and accessories, such as heavy-duty drawer sets, specialized shelving, and integrated power sources, ensuring your truck is a true mobile command center.
Ready to tackle the biggest jobs with the TMAX 2? Contact us today for a consultation and a quote on a complete, heavy-duty Stellar mechanic truck solution.
