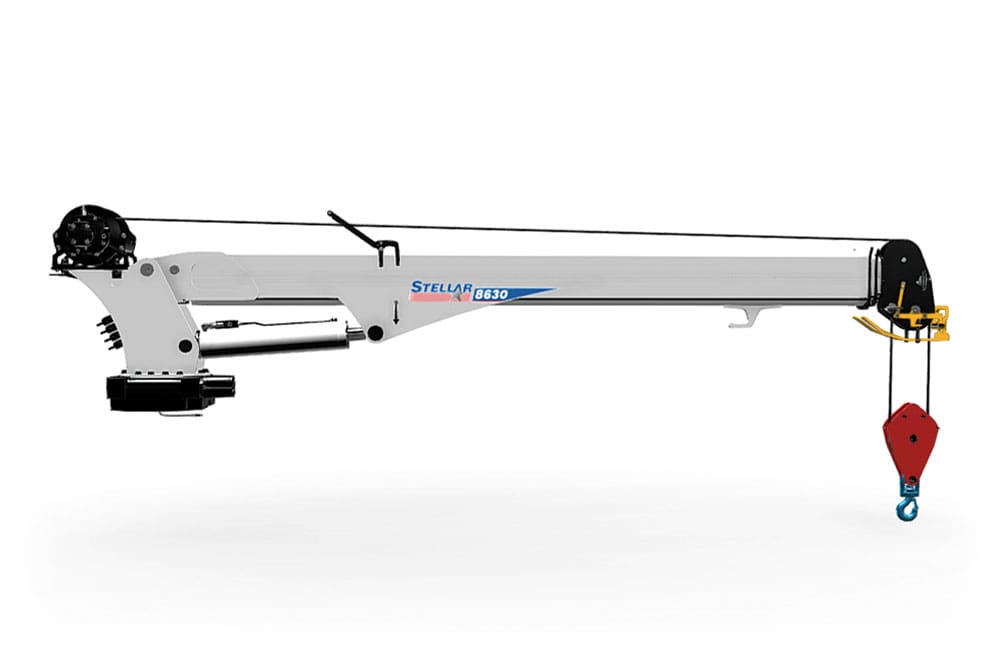

Dominate the Job Site with the Stellar 8630 Hydraulic Service Crane
Looking for a heavy-duty hydraulic service crane that combines power, precision, and state-of-the-art control? The Stellar Industries 8630 hydraulic service crane, available through Heritage Industries, is the ultimate tool for mechanics, construction, and equipment repair professionals. Featuring an impressive 8,600-lb maximum lifting capacity and a 30-foot full hydraulic reach, the 8630 series is engineered to elevate your productivity and safety on every job.
Stellar 8630: Built for Performance and Productivity
The Stellar 8630 is part of the innovative 86 Series, designed with a focus on maximizing capacity while reducing weight. Its advanced features ensure superior performance and ease of use in the most demanding environments.
Advanced Control with CDTpro™
The heart of the 8630’s precision lies in the CDTpro™ (Crane Dynamics Technology) Control System with Range Finder™ technology.
- Real-Time Capacity: The innovative Range Finder™ technology provides real-time max lifting capacity, allowing operators to plan the lift before unstowing the crane.
- Proportional Control: Ensures smooth, accurate, and simultaneous operation of multiple crane functions.
- On-Demand Speed Control: This exclusive feature ramps engine RPM up only when the crane is in use, reducing fuel consumption and noise when idling.
Specifications
| Crane Rating*: | 53,100 ft-lb (7.3 tm) |
|---|---|
| Boom Length: | 13′ (3.96 m) from CL of crane |
| Boom Extension: • 1st Stage: • 2nd Stage: |
Hydraulic 100″ (254 cm) Hydraulic 100″ (254 cm) |
| Maximum Horizontal Reach: | 29′ 8″ (9.04 m) from CL of crane |
| Maximum Vertical Lift: | 31′ 6″ (9.60 m) from crane base |
| Lifting Capacity**: | 8,600 lbs @ 6′ 2″ (3,900 kg @ 1.88 m) 1,820 lbs @ 29′ 2″ (826 kg @ 8.89 m) |
| Boom Elevation: | -10° to +80° |
| Stowed Height (crane only): | 38.6″ (98 cm) |
| Mounting Space Required: | 20″ x 21″ (50.8 x 53.3 cm) |
| Approximate Crane Weight: | 1,735 lbs (787 kg) |
| Winch • Rope Diameter: • Line pull speed: |
3/8″ (0.95 cm) 6X31 IWRC-DGXIP X 120′ (30.48 m) 60 ft/min (18.29 m/min) 4,300 lbs (1,950 kg) 8,600 lbs (3,900 kg) |
| Rotation: | 400° power (worm gear) |
| Power Supply Required: | PTO & Pump 8 gpm @ 3,000 psi (30.3 lpm @ 207 bars) |
| Min. Rec. Chassis (GVWR): | 19,000 |
| *Crane rating in Boost Mode. Normal crane rating is 45,000 ft-lbs (6.2 TM). | |
| **Maximum capacities in Boost Mode. |

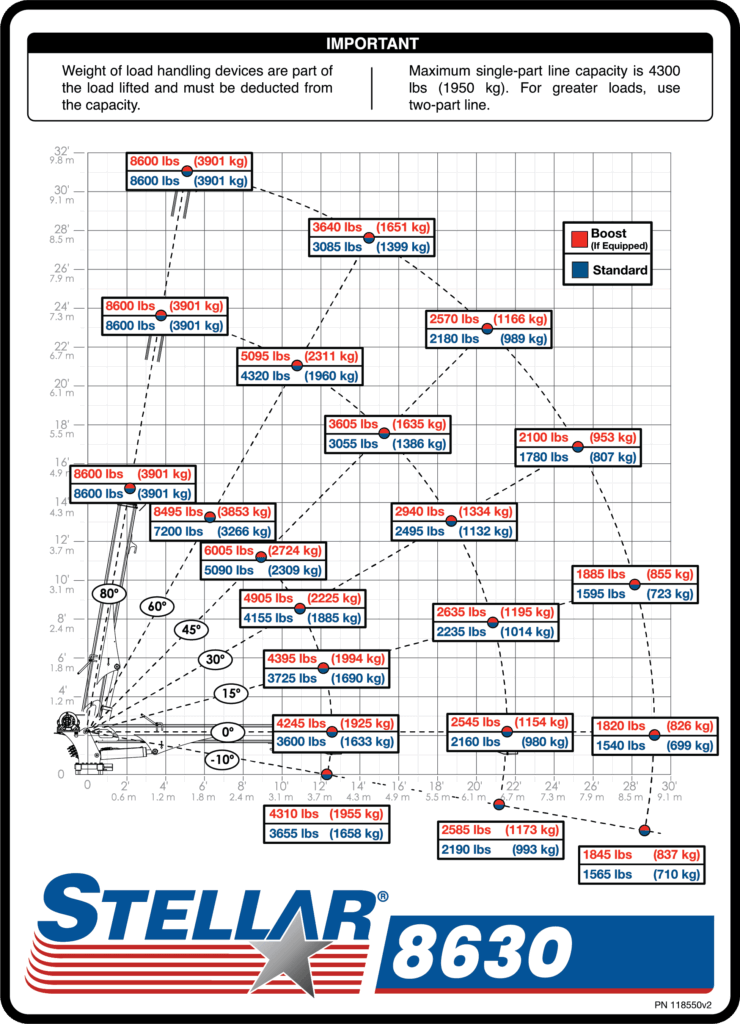

Capacity Chart

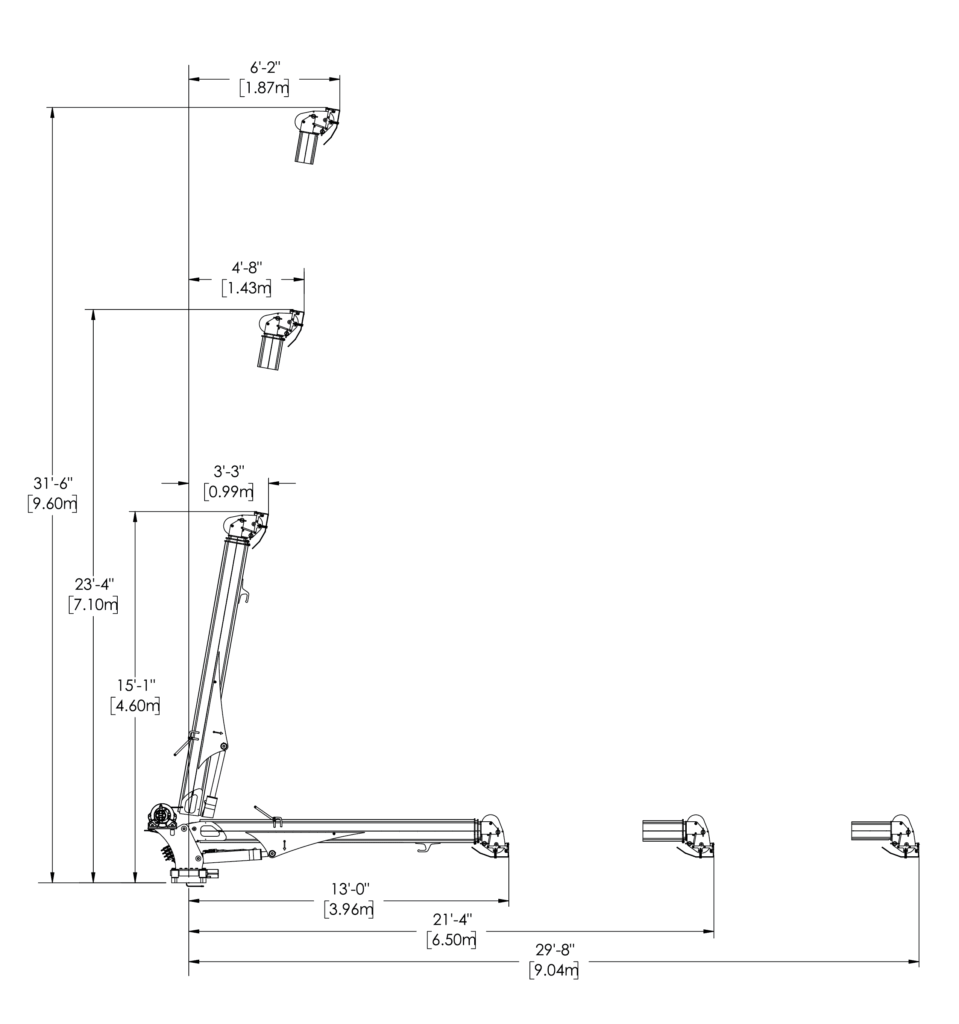

Dimensions

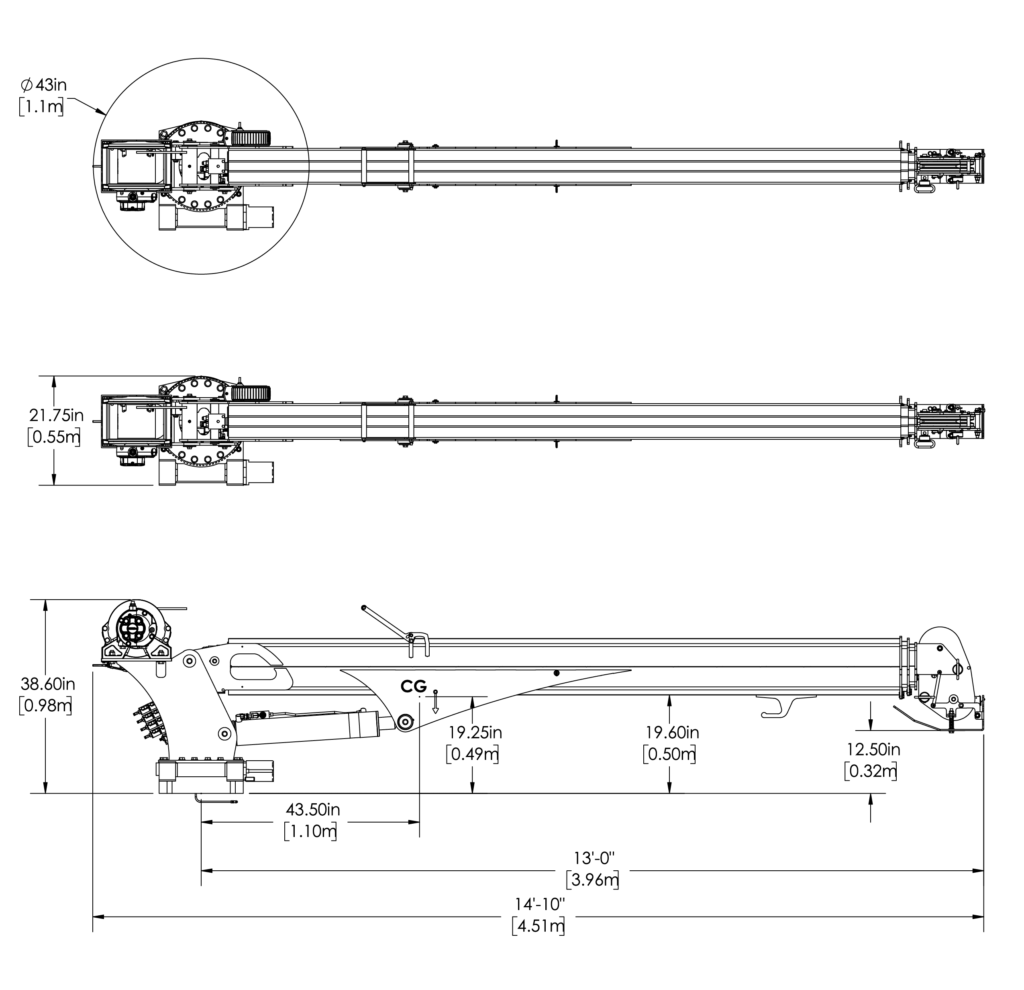

Geometric Dimensions
Why Choose the Stellar 8630 from Heritage Industries?
At Heritage Industries, we don’t just sell equipment; we provide complete, reliable solutions.
- Expert Consultation: Our specialists will work with you to ensure the Stellar 8630 crane is perfectly matched and mounted to your truck chassis, creating a seamless, high-performance package.

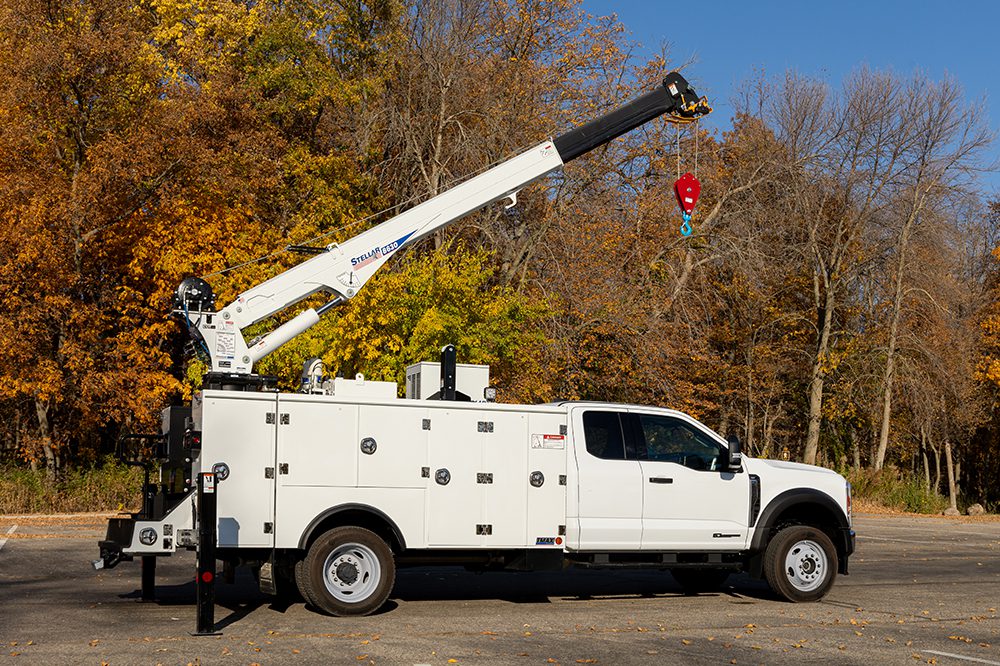

- Turnkey Installation: We offer professional installation services, often pairing the 8630 with a Stellar TMAX™ mechanic truck body for the ultimate service truck configuration.
- Unmatched Support: Benefit from comprehensive training and dedicated after-sales support to keep your crane operating reliably for years to come.
The Stellar 8630 hydraulic service crane is an investment in durability, safety, and efficiency. Contact us today to learn how this world-class crane can transform your mobile service operation.
