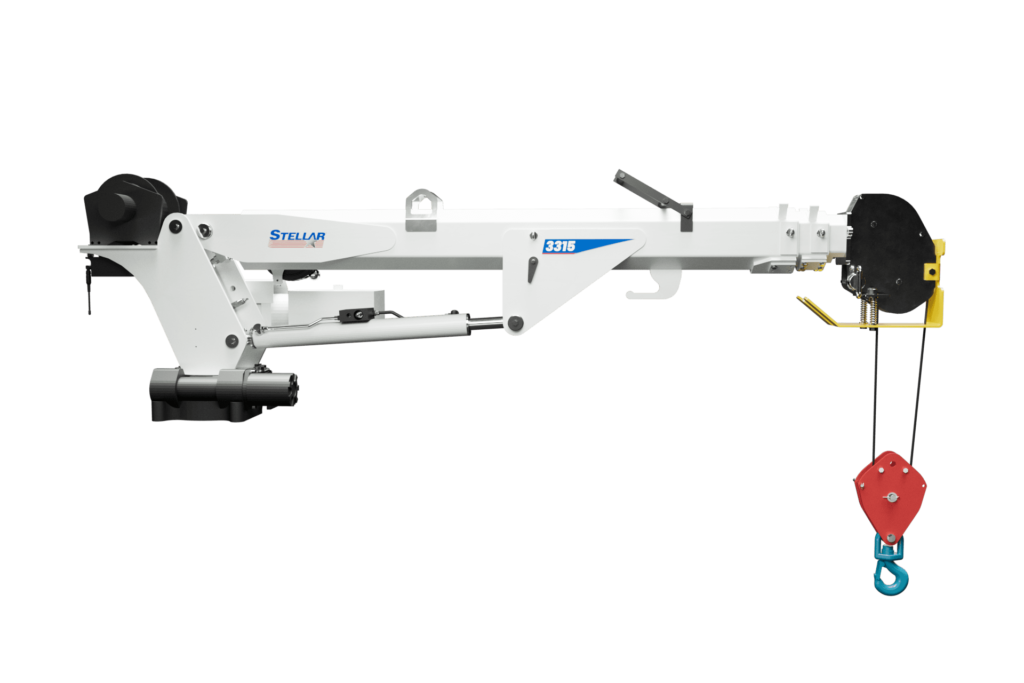

Stellar 3315 Electric-Hydraulic Crane: Your Quiet, Powerful Solution
Maximize your fleet’s efficiency and payload with the robust Stellar Industries 3315 Electric-Hydraulic Service Crane. Engineered for light-to-medium-duty lifting, this crane is the ideal choice for municipalities, public utilities, water works, and light construction that require dependable performance without the complexity and cost of a full PTO system. This innovative electric-hydraulic design allows for engine-off operation, dramatically reducing fuel costs, cutting emissions, and enabling quieter job site work—perfect for early-morning or residential service calls. Furthermore, the standard radio remote control and durable hexagonal boom design ensure precise, safe, and fast material handling.
This innovative electric-hydraulic design allows for engine-off operation, dramatically reducing fuel costs, cutting emissions, and enabling quieter job site work—perfect for early-morning or residential service calls. Furthermore, the standard radio remote control and durable hexagonal boom design ensure precise, safe, and fast material handling.
Additional Information
- Planetary Winch. Featuring a hydraulic or mechanical brake system, it lifts the maximum crane load and offers the smoothest and fastest speeds in the market today for maximum productivity.
- CDTpro Control System. The most advanced crane remote ever. Save time by knowing your crane can lift the load before you set up. The innovative, industry-only Range Finder™ technology provides real-time max lifting capacity from any point around the crane.
- Flip Sheave with Bar-Style Anti-Two Block. Stellar’s patented flip sheave allows for a shorter horse head profile, allowing for boom placement in tight quarters, such as an equipment cab.
- Octagonal Boom. This next-generation telescopic service crane boom design optimizes all the features of a hexagonal boom while reducing weight.
- Superior Boom Articulation. Stellar Hydraulic Cranes make loading easier with industry-leading -10 degrees to +80 degrees articulation.
- Full Hydraulic Extension. No manual extension is required. You get full hydraulic reach of 30′.
- Crane Boost System: This industry-first, proprietary technology from Stellar allows operators who reach maximum capacity to productively operate through that situation by effectively increasing crane capacity to nearly 118% of its normal operating mode for a short period of time.

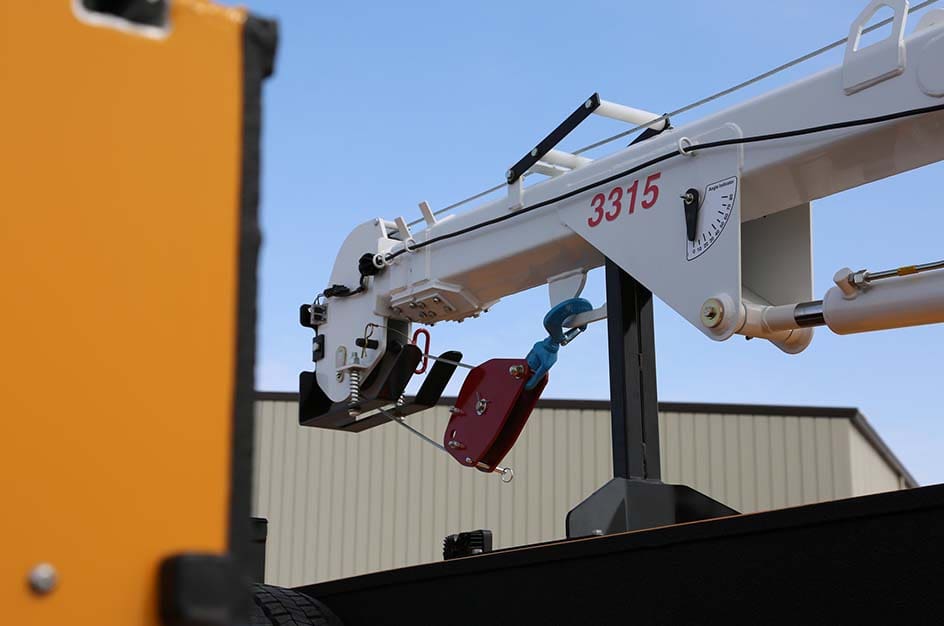

- Quick-Release Snatch Block Stow. Easily stow your snatch block on the underside of the boom after use. The unique design gently releases the snatch block for use when the boom is raised at close to 60 degrees to ensure a safe and orderly deployment.
- On-Demand Speed Control. This Stellar exclusive ramps engine rpm up only when the crane is being used, returning it to idle after five seconds to lower fuel consumption and reduce noise pollution in the work area.
- 400-Degree Rotation System. The cast iron base and internal mechanical stop provide the most durable rotation system found in the industry.
- Counterbalance Valves. Included on each cylinder to prevent unintended cylinder movement should a hose break.
- Greaseable Pivot Bushings. Each pivot pin location includes bushings and grease zerks to simplify maintenance and help ensure years of use.
- Certified. Meets ANSI B30.5 and OSHA 1910.180 specifications.
Specifications
| Crane Rating*: | 53,100 ft-lb (7.3 tm) |
|---|---|
| Boom Length: | 13′ (3.96 m) from CL of crane |
| Boom Extension: • 1st Stage: • 2nd Stage: |
Hydraulic 100″ (254 cm) Hydraulic 100″ (254 cm) |
| Maximum Horizontal Reach: | 29′ 8″ (9.04 m) from CL of crane |
| Maximum Vertical Lift: | 31′ 6″ (9.60 m) from crane base |
| Lifting Capacity**: | 8,600 lbs @ 6′ 2″ (3,900 kg @ 1.88 m) 1,820 lbs @ 29′ 2″ (826 kg @ 8.89 m) |
| Boom Elevation: | -10° to +80° |
| Stowed Height (crane only): | 38.6″ (98 cm) |
| Mounting Space Required: | 20″ x 21″ (50.8 x 53.3 cm) |
| Approximate Crane Weight: | 1,735 lbs (787 kg) |
| Winch • Rope Diameter: • Line pull speed: |
3/8″ (0.95 cm) 6 x 31 IWRC-DGXIP x 120′ (30.48 m) 60 ft/min (18.29 m/min) 4,300 lbs (1,950 kg) 8,600 lbs (3,900 kg) |
| Rotation: | 400° power (worm gear) |
| Power Supply Required: | PTO & Pump 8 gpm @ 3,000 psi (30.3 lpm @ 207 bars) |
| Min. Rec. Chassis (GVWR): | 19,000 |
| *Crane rating in Boost Mode. Normal crane rating is 45,000 ft-lbs (6.2 TM). | |
| **Maximum capacities in Boost Mode. |

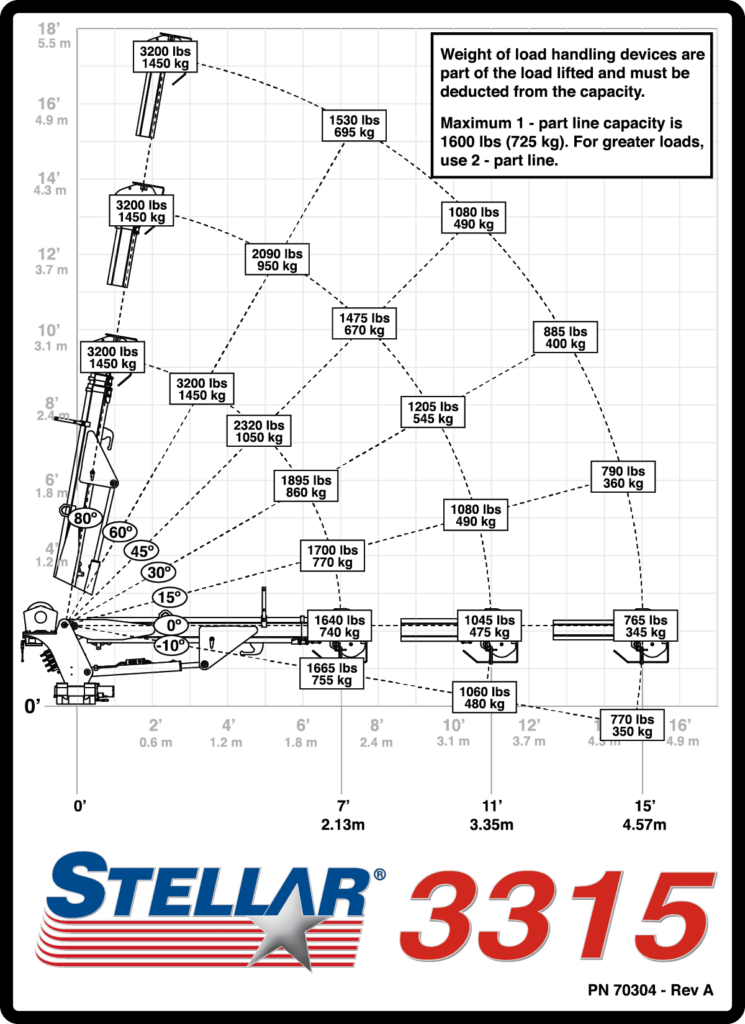

Capacity Chart

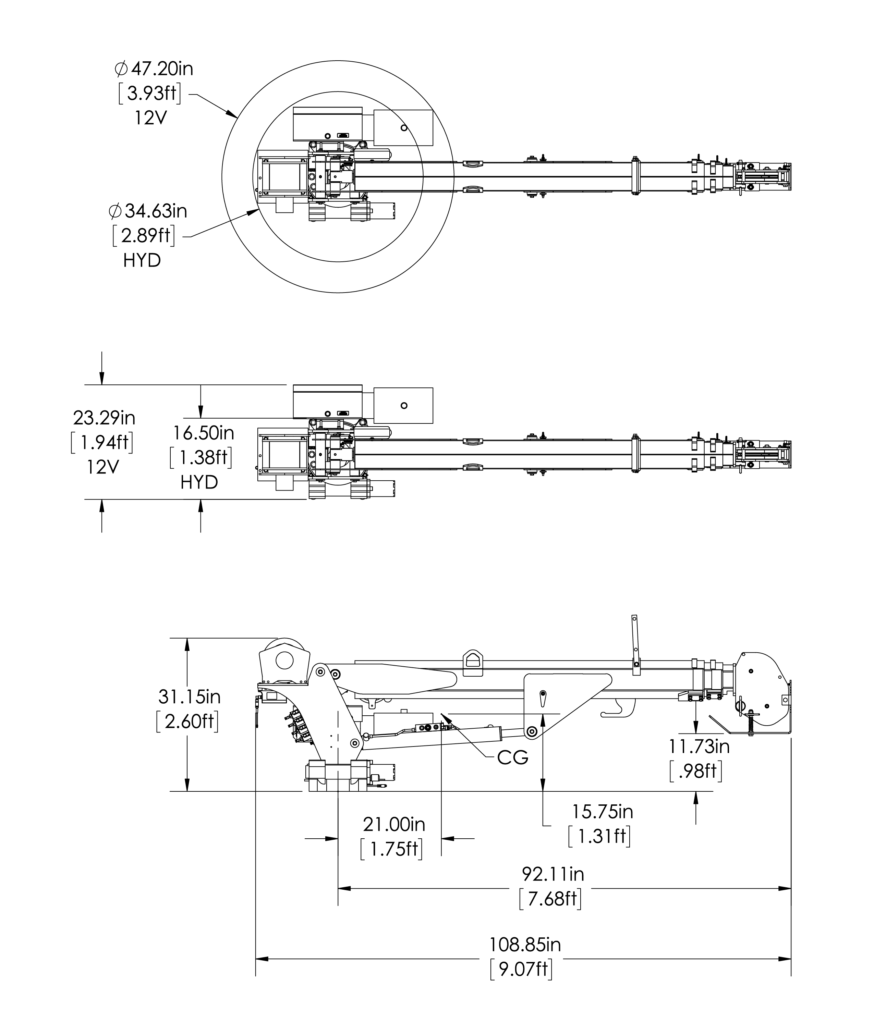

Dimensions

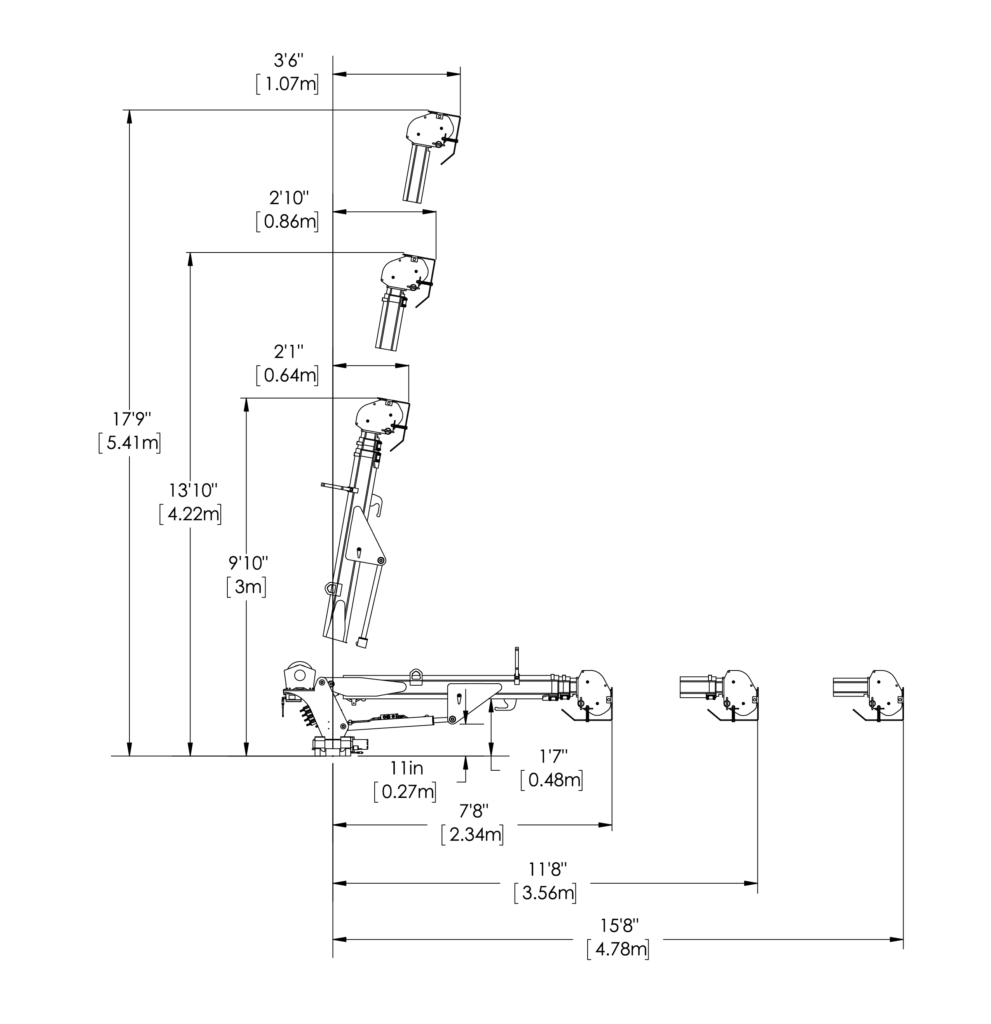

Geometric Dimensions

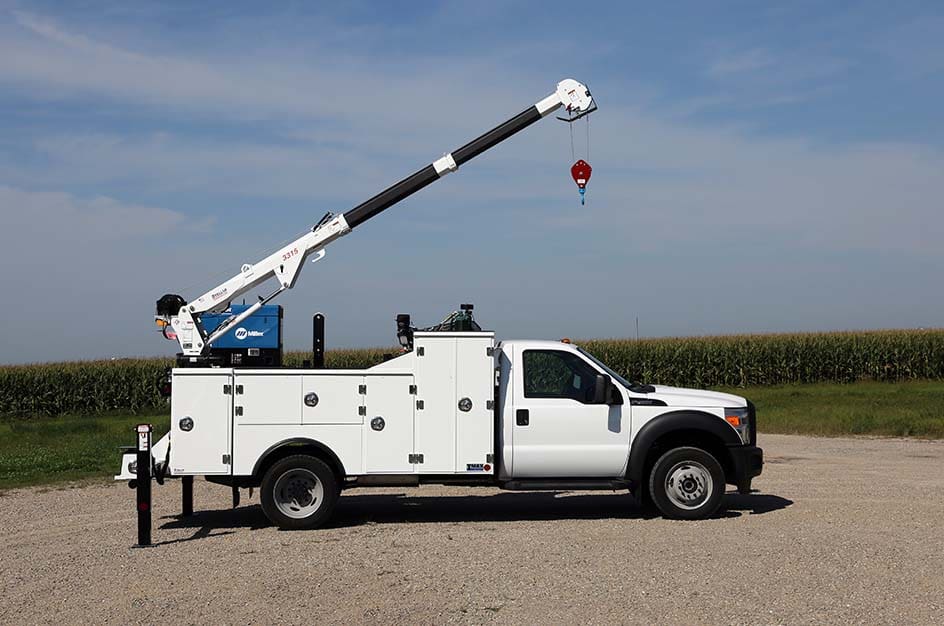

At Heritage Industries, we know the Stellar 3315 electric-hydraulic service crane is more than just a piece of equipment—it’s the core of your mobile repair unit. That’s why we don’t just sell cranes; we deliver complete, tailored work truck solutions.
Our upfitting specialists excel at integrating the lightweight, power-saving Stellar 3315 with a purpose-built mechanic truck body, such as a steel or aluminum Stellar TMAX™ Series body. This holistic approach ensures the crane’s 3,200 lb. capacity and 15-foot reach are perfectly matched to a service body that balances a large payload allowance with organized, durable storage. We ensure every mounting point and structural detail is optimized to handle the repetitive, efficient demands of an electric crane.
From consulting on the ideal chassis and configuring secure storage compartments to seamlessly integrating necessary accessories like welders, air compressors, and power units that support the 12V crane operation, our team builds a solution focused on your productivity.
Ready to see how the cost-effective and quiet operation of the Stellar 3315 can be the perfect fit for your utility or municipal fleet? Contact us today to start designing your custom service truck package
