NB-220 Lube Skid

NB-220 Lube Skid: The Heavy-Duty, High-Capacity Solution for Mobile Service

When your fleet demands extended service intervals and greater fluid capacity, the Heritage Industries NB-220 Lube Skid delivers. Engineered as the ultimate high-volume mobile lubrication system, the NB-220 provides the capacity and organization needed to service large construction equipment, heavy machinery, and extensive truck fleets—all from the back of a versatile service vehicle.

Forget the expense and limitations of traditional lube trucks. The NB-220 Lube Skid is a self-contained, all-aluminum unit designed for superior flexibility, safety, and operational efficiency, making it the smart choice for modern heavy equipment preventative maintenance.

Key Features of the NB-220 High-Volume Lube Skid

The NB-220 is built on the proven Heritage Industries skid platform but scaled up and reinforced for heavy-duty field service.

  • Robust Aluminum Construction: Durable and lightweight design minimizes vehicle weight while maximizing payload, ensuring long-term reliability in harsh job site environments.
  • Multiple Product Tanks: Typically configured with one 120-gallon used oil tank and four 80-gallon fresh fluid tanks, providing dedicated, segregated storage for various oils, hydraulic fluids, and coolants.
  • Integrated Fluid Management: Equipped with high-quality pumps, filtration, and precision dispensing meters (optional) to ensure fast, clean, and accurate fluid transfer.
  • Quick & Safe Mobility: Features integrated forklift pockets and hoist points for safe and easy loading/unloading from a truck or setting it down on a job site.
  • Reel Management System: Includes multiple 50-foot reels for fresh fluids and used oil evacuation, allowing technicians to reach all service points comfortably.
  • Advanced Safety: Designed with full fluid containment and integrated drain features to meet environmental compliance standards and promote a cleaner worksite.

NB-220 STANDARD FEATURES:

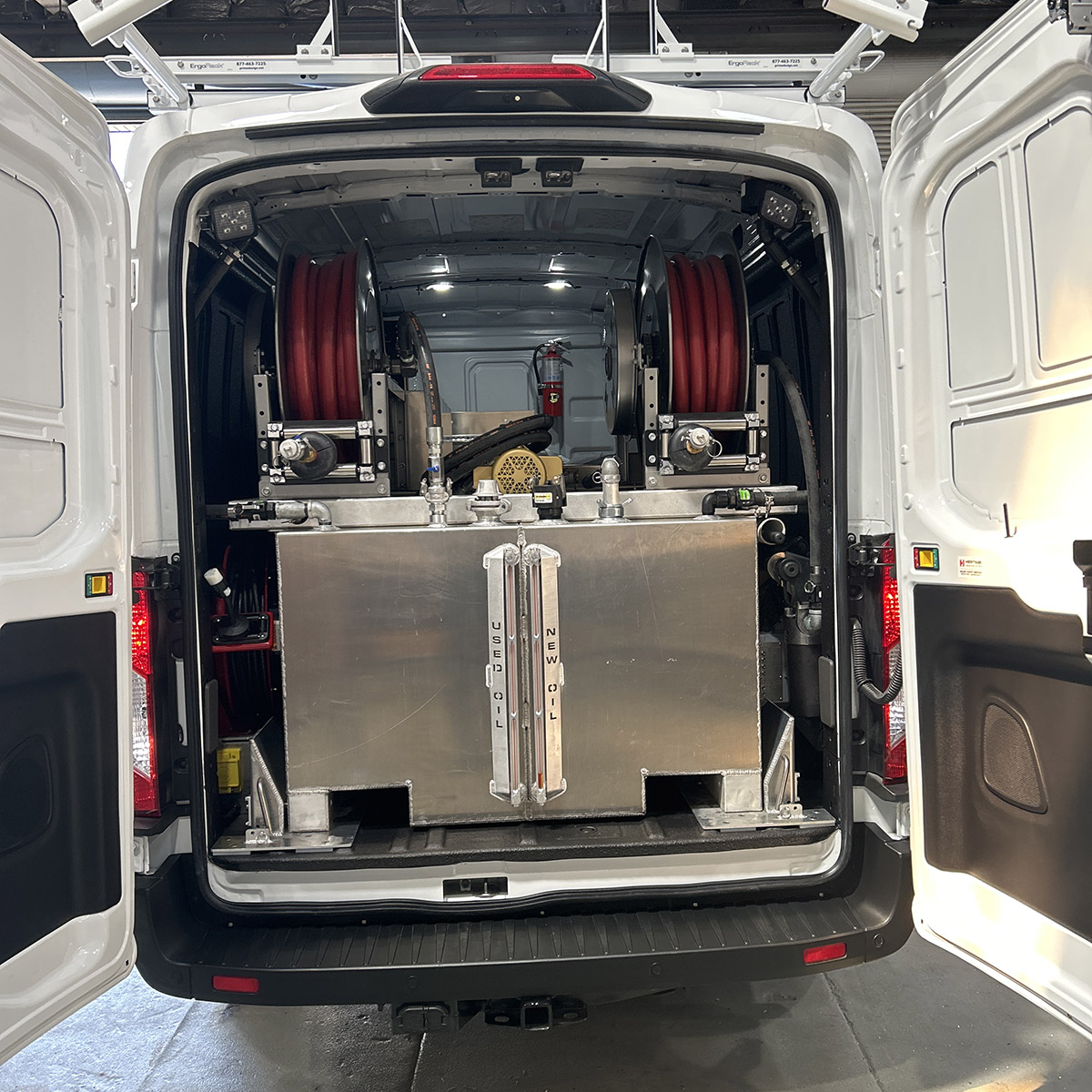

Tank Assembly

  • Construction: All-aluminum construction with adry weight of 1,200 lbs.
  • Capacity: Two baffled reservoirs, one for 220 gallons of new oil and one for 220 gallons of used oil.
  • Filtration & Sump: Includes a 45.5″ x 18.5″ x 10″ self-draining sump with a filter catch.
  • Reels:

    o One 1″ hose product reel for rapid oil dispensing with 10-micron filtration.

    o One 1″ hose evac reel for rapid oil evacuation.

New Oil Product System

  • Pump: 3/4 HP, 110V electric gear pump capable of dispensing up to 10 GPM.
  • Reel: 1″ x 75′ steel spring retractable Hanney oil
    reel with a cam lock end.
  • Fill Port: Quick fill port at the front of the skid with
    10-micron filttion.

Used Oil Evac System

  • Pump: 3/4 HP, 110V electric gear pump capable of dispensing up to 10 GPM.
  • Pump Operation: Unmounted pump for “atsource” applications, effective for runs up to 75
    feet.
  • Sump: Self-draining sump with filter separators.
  • Reel: 1″ x 75′ steel spring retractable Hanney oil
    reel with a cam lock end.

EVAC Used Oil System

  • 1” double diaphragm pump
  • 1” 4-way reversing flow control valve
  • 1” 3-way sump suction valve w/ reverse check
  • 1” x 40’ dual pedestal oil reel; 250 PSI rated

Electronic and Control Systems

  • Inverter: A 4,000W pure sine inverter is mounted in
    the cab to run the entire 110V system.
  • Transfer Switch: Allows the system to operate on
    shore power (via a rear van plug) or charge the
    vehicle’s battery.
  •  Controls:
    • Vehicle-Integrated: 110V design with remote
      options for pumps, heaters, and recirculation.
    • Cord Reel: 100-foot 110V cord reel for remote
      pump operation.
  • Lighting:
    • Controlled by AuxBeam unit in cab
    • Includes 12 V rope lighting, work lights,
      strobes (wig wags), and underbody lighting.

NB-220 OPTIONAL FEATURES:

Mounting System

  • Quick Dock Mount with aluminum construction and two stainless steel quick-release pins for easy installation and removal. The mount uses the chassis’s factory frame for
    superior strength and safety.

Heating Package

  • Eberspacher System: A fully integrated heating
    circulation system for new oil.
  • Fuel Source: Tied to the van’s fuel tank for
    continuous operation.
  • Rapid Heating: Heats new oil through a heat
    exchange system, reaching operating temperature
    from near freezing within 25 minutes.

Quick-Fill

  • Ports: Snap-tite quick-fill ports with 10-micron filtration.
  • Safety: Electronic sensors and safety valves prevent overfilling.

Filtration

  • Dispensing/Fill: 10-micron absolute filtration on both dispensing and quick-fill lines.
  • Tank: Desiccant filtration on the new product tank.

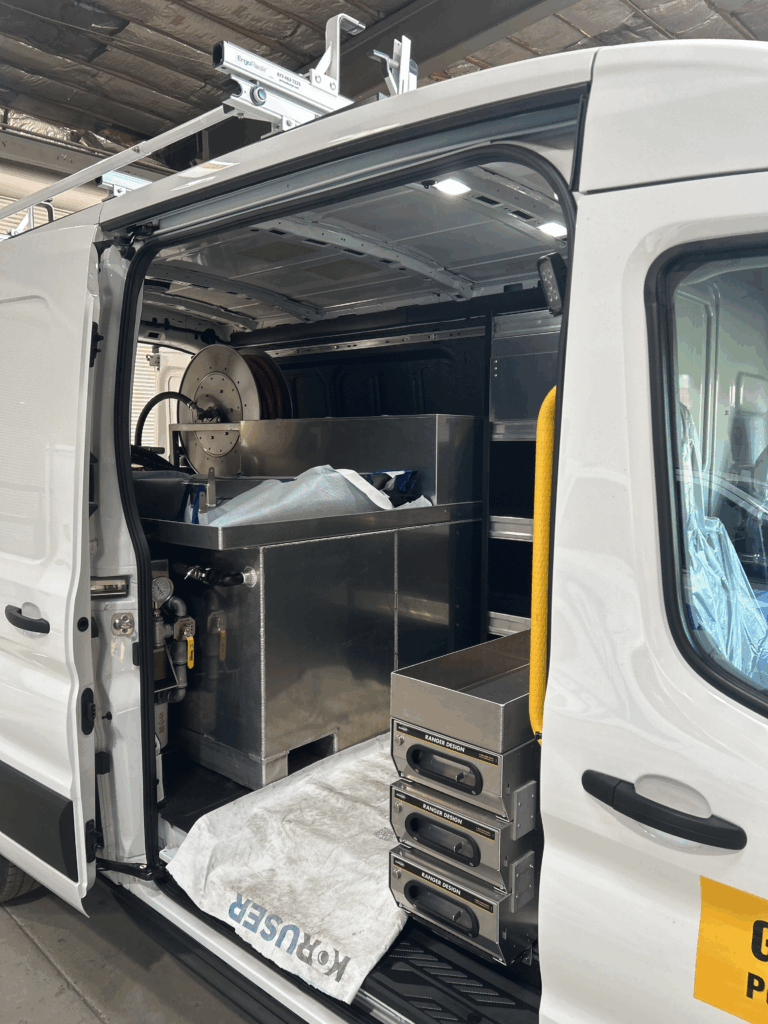

Van Features

  • Partition: Knapheide poly partition to safely separate the cab from the work area.
  • Storage: 36″ 4-shelf shelving, three slide-out tool drawers, and a 5-gallon bucket holder.
  • Interior: Unistrut throughout the rear for flexible storage.
  • Mounts: Ram laptop mount in the cab.

Filtration

  • 10-micron absolute dispensing filtration
  • Desiccant filtration

Safety Features

  • Electrical: 12V and 110V protection devices on all circuitry.
  • Access: 24″ grab handle for easy entry at the sliding door.
  • Fire: Fire extinguisher mounted in the work area.

The Operational Advantage: Why the NB-220 Beats Traditional Lube Trucks

1. Lower Total Cost of Ownership (TCO)

The NB-220 allows you to utilize less expensive, non-CDL-required vehicles, dramatically reducing the costs associated with:

  • Vehicle Purchase Price
  • Fuel Consumption
  • Insurance and Registration

2. Superior Flexibility and Utilization

Easily move the skid between different service vehicles, allowing you to quickly adapt to job demands. When the skid is offloaded, the truck remains available for other tasks.

3. Increased Technician Productivity

With massive on-board capacity and all necessary tools consolidated, your field techs spend less time driving back for refills and more time completing billable maintenance services. The heavy-duty capacity is perfectly suited for managing the complex fluid requirements of mining equipment, large yellow iron, and transport fleets.

Ready to Scale Your Mobile Maintenance?

The Heritage Industries NB-220 Lube Skid is engineered for profitability and performance in the demanding heavy-duty service industry.

Give us a call and request a quote today!
